The main role of the conveying element is to efficiently and stably push the material in the barrel with positive displacement. The size of the lead determines the conveying speed. The larger the lead, the faster the conveying speed. Conversely, the smaller the pitch, the slower the conveying speed (pitch range 0.5D-2D). The conveying elements can be divided into self-wiping elements and non-self-wiping elements. Suitable elements can be selected according to different process conditions.

Conveying Screw Elements Manufacturer

Extruder Screw Elements Dimensions:
φ20 mm ~φ300 mm
Extruder Screw Elements Properties:
Wear-resisting, Corrode-resisting, Durable

Introduction to Extruder Screw Element for Sale

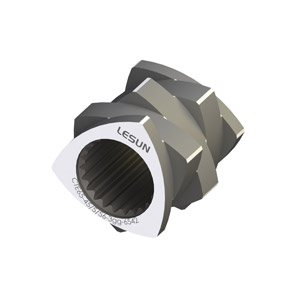

The conveying screw element is a self-sweeping type extruder screw component, open longitudinally and closed laterally, which has strong conveying effect. Short material residence time and good self-cleaning property enable it to establish high pressure within a short axial distance.

The conveying screw component is mainly a thread structure, and its function is to convey the material and give the material a certain thrust so that the material can overcome the resistance encountered in the flow channel. Conveying screw elements are currently the most popular extruder screw elements, with a strong transport function, short residence time and good self-cleaning properties.

As a top extruder screw manufacturer, Lesun can supply standard conveying screw elements for many overseas extruder brands like Coperion, Leistritz, Berstorff, Toshiba, JSW, Kobe, APV, Maris etc. If you are looking for extruder screw for sale, contact us!

Processing Characteristics of LESUN Extrusion Screw for Sale:

1.Suitable suggestion on material to ensure components performance and extend lifetime of conveying screw components.
2.Professional technical team can provide surveying and mapping support.
3.All extrusion screws are finished by CNC machine.
4.Sophisticated quality managment system ensure superior quality.
5.All extruder screw component materials are supplied by professional material supplier, and element and metallographic analysis are carried out to ensure that the raw materials are safe;
6.The internal spline is 100% checked with a spline plug to ensure the interchangeability of the conveying screw components;
7. All twin screw extruder screw elements are finished by CNC grinding
8. Professional technical team can not only provide timely and accurate sample mapping design, but also provide technical services in component combination.
9. The perfect modern management system ensures that the conveying screw elements received by the customers are 100% qualified, and the quality of each component is traceable.

Contamination in a continuous process like extrusion can take a profitable piece of business to un-profitable in no time at all. So cleaning is very important. Take a look at extruder screw cleaning and processes, it will help a lot!
