Tooth-based flow splitting and recombination for advanced distributive mixing
Strong distributive mixing capability
Flow splitting and recombination mechanism
Optimized for fiber-reinforced materials
Configurable forward and reverse teeth

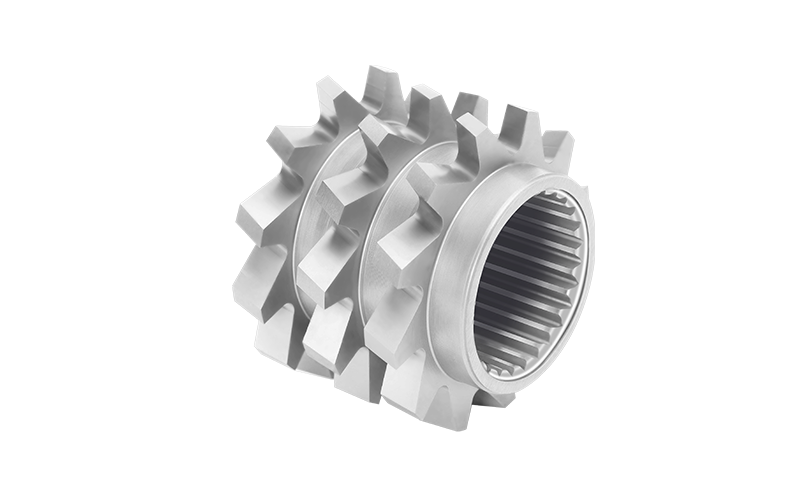

TME mixing screw elements are composed of intermeshing toothed discs, designed to split and recombine melt flow repeatedly.
They incorporate forward and reverse teeth arranged in matched pairs, ensuring proper intermeshing of the twin screws and avoiding mechanical interference during assembly.
Unlike conveying screw elements, TME provides no net conveying capability, focusing entirely on distributive mixing.
Creates multiple flow paths for efficient material redistribution.
Ensures uniform dispersion of fibers and additives.
Ensures controlled flow splitting through coordinated forward–reverse interaction.
Allows tuning of mixing intensity.
Geometric flow division rather than shear-based mixing
| Diameter | Ø18–Ø400 |
| Do/Di Ratio | 1.55～1.8 |
| Length | 0.5～2.5D |
| Pitch | Customized |
| Material | N00/D2/D11/W6/H9/H10/H26/Hastelloy/Stainless |
| Surface Hardness | HRC 58–64 |
| Max. Operating Temp | ≤450°C |
| Wear Resistance | Standard/High/Ultra-high |
| Corrosion Resistance | Standard/High/Ultra-high |
| Application | Masterbatch/Compounding/Recycling /Film/Feed/Food/Pharmacy |
| Suitable for | Twin Screw Extruder |
A: It provides strong distribution without excessive shear, preserving fiber length.
A: No, they must be used in matched pairs to ensure proper intermeshing and avoid mechanical interference.
Get a Quote
CKE elements combine conveying and mixing functions, providing gentle material exchange with low shear and reduced energy consumption.
Best suited for:
Heat-sensitive materials
Low-shear compounding processes
Applications requiring stable conveying with mild mixing
ZME elements combine reverse conveying structure with forward teeth, creating intensive cutting and recombination of melt flow.
Best suited for:
High mixing intensity applications
Difficult-to-disperse materials
High-performance compounding
SME elements introduce shallow reverse grooves on conveying flights, generating controlled melt backflow and improving distributive mixing.
Best suited for:
Melt stage mixing
General distributive mixing
Applications requiring good self-cleaning
