Energy-efficient mixing with conveying capability and low shear
Combined conveying and mixing
Low shear and low heat generation
Reduced torque consumption
Gentle material processing

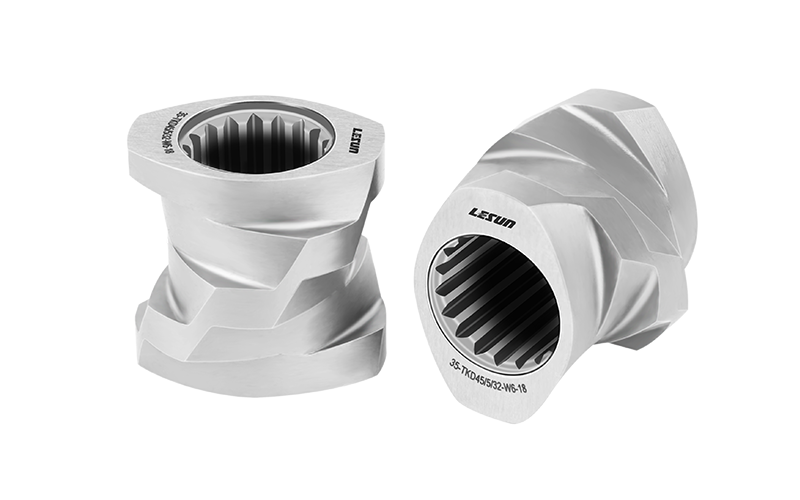

CKE mixing screw elements combine the advantages of conveying screw elements and kneading screw elements, providing both material transport and mild mixing.
They generate low shear and low heat, making them ideal for processes where material degradation or energy consumption must be minimized.
Compared to kneading blocks, CKE elements significantly reduce torque load while maintaining mixing performance.
Maintains forward transport with simultaneous mixing.
Protects sensitive materials.
Lowers torque and power demand.
Ensures consistent extrusion conditions.
Low-energy mixing through controlled material exchange
| Diameter | Ø18–Ø400 |
| Do/Di Ratio | 1.55～1.8 |
| Length | 0.5～2.5D |
| Pitch | Customized |
| Material | N00/D2/D11/W6/H9/H10/H26/Hastelloy/Stainless |
| Surface Hardness | HRC 58–64 |
| Max. Operating Temp | ≤450°C |
| Wear Resistance | Standard/High/Ultra-high |
| Corrosion Resistance | Standard/High/Ultra-high |
| Application | Masterbatch/Compounding/Recycling /Film/Feed/Food/Pharmacy |
| Suitable for | Twin Screw Extruder |
A: To reduce shear, temperature rise and energy consumption.
Get a Quote
ZME elements combine reverse conveying structure with forward teeth, creating intensive cutting and recombination of melt flow.
Best suited for:
High mixing intensity applications
Difficult-to-disperse materials
High-performance compounding
SME elements introduce shallow reverse grooves on conveying flights, generating controlled melt backflow and improving distributive mixing.
Best suited for:
Melt stage mixing
General distributive mixing
Applications requiring good self-cleaning
TME elements use intermeshing toothed discs to split and recombine melt flow, achieving efficient distributive mixing without conveying.
Best suited for:
Melt mixing zones
Fiber-reinforced materials
High homogeneity requirements
