Rectangular Spline Screw Shaft | Twin Screw Extruder Screw Shaft

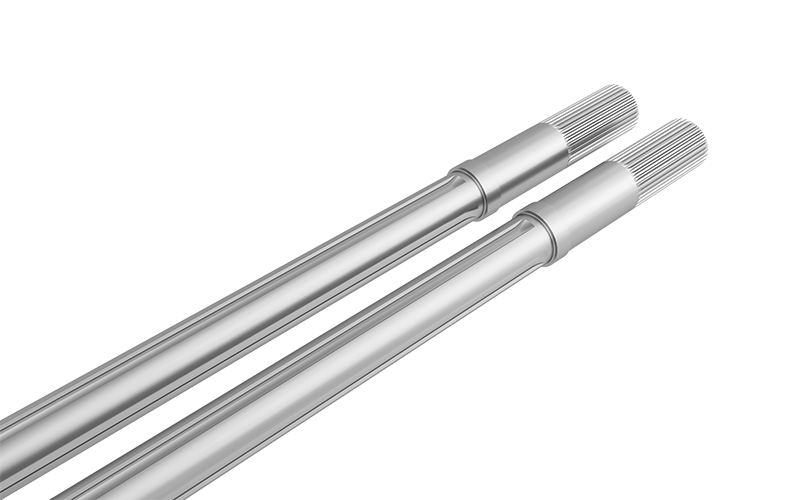

Rectangular Spline Screw Shaft providing improved torque distribution and mechanical stability.
Rectangular spline shafts distribute torque across multiple contact surfaces, significantly reducing stress concentration compared to keyed designs.
Manufactured via machining processes, this spline geometry offers a balance between manufacturability and mechanical performance, making it suitable for medium torque extrusion systems.
However, due to non-optimized tooth geometry, load distribution along the spline flank is not uniform, which limits fatigue performance under high cyclic loading conditions.
| Diameter | Ø10-200mm |
| Length | 1000～15000mm |
| L/D Ratio | 1~64D |
| Involute Standard | DIN 5480/ GB/T 3478/ANSI B92.1/ISO 4156/JIS B 1602 |
| Spline Type | Single key / Rectangular Spline / Hexagonal / involute spline / Customized |
| Spline Modulus | 1.5 / 2.0 / 2.5 / 3.0 / 4.0 |
| Material | A40/A70/A80/Stainless |
| Tensile Strength | ≥900 MPa |
| Yield Strength | ≥700 MPa |
| Torque Capacity(Max) | 5～18 |
A: Provides better load distribution and higher torque capacity.
Get a Quote

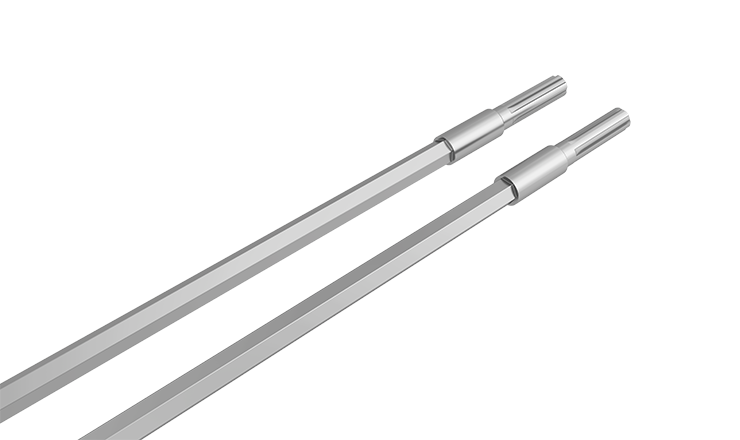

Six-sided geometry enabling uniform torque transfer and rapid screw element replacement.
Best suited for:
Powder coating
Frequent material changes
Fast screw configuration changes

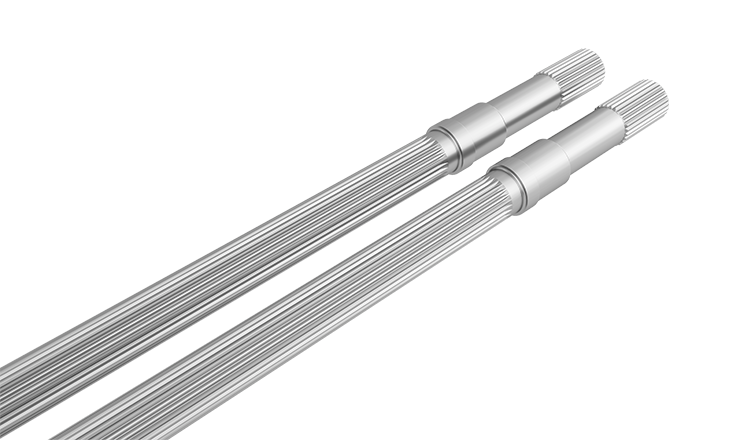

Precision involute spline ensuring high torque transmission with accurate centering and load distribution.
Best suited for:
High torque extrusion
Engineering plastics
Masterbatch production

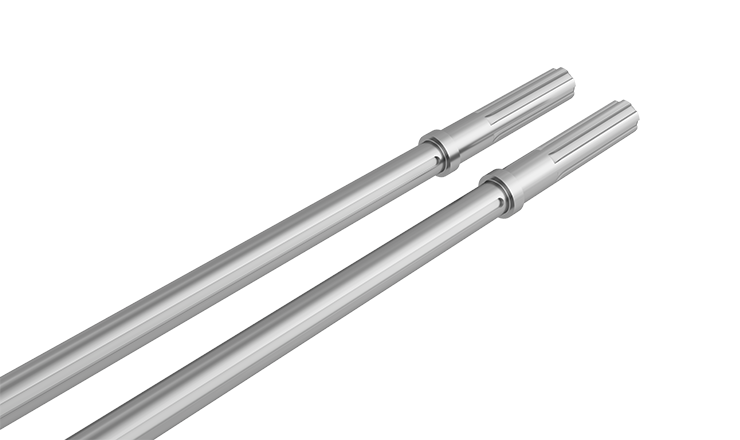

Simple keyed design for basic torque transmission in low-load extrusion systems.
Best suited for:
Low torque applications
Legacy extruders
PVC processing
