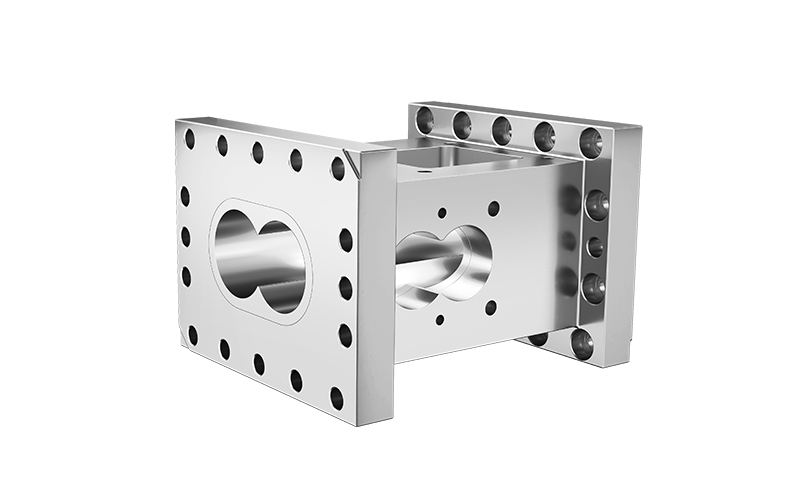

Side feed barrels are designed to introduce secondary materials directly into the molten polymer stream through a precision-engineered lateral opening.

The geometry, angle and position of the feeding port are optimized based on process requirements, ensuring efficient incorporation of fillers, fibers or additives into the screw intermeshing zone.

To withstand severe abrasion at the material convergence point, the barrel is equipped with high-grade wear-resistant liners, while the opening edges are precision-finished to prevent material accumulation or degradation.

Flexible configuration of feeding phase and orientation enables improved material capture efficiency and mixing uniformity, making it a key modular component for complex compounding processes.

Key Features

Controlled addition of secondary materials

Supports fibers and fillers

Prevents feeding overload

Enhances process flexibility

Design & Technical Insights

Side feeding requires pressure balance to avoid backflow and ensure proper material incorporation. Positioning relative to melting zone is critical.

Positioning relative to melting zone is critical.

Technical Details

Inner Diameter	20–400 mm
Length	1D～8D
Compatible Models	Ø18–Ø400
Body Material	N00/CK45/A42/Stainless
Liner Material	D11/W6/ H6+/H26
Liner Process	Solid sleeve/Sintering Process/Laser Cladding Process

"∞" Hole	Cylindricity≤0.02 mm Position≤0.04mm
Pressure Rating	≤50MPa
Operating Temperature	0°C to 450°C
Heating Method	Cast copper or aluminum heaters/heating rods/electromagnetic induction heating
Cooling Method	Water-cooled/air-cooled/oil-cooled
Connection Method	Standard flange connection/clamp-type connection
