Controlled plastication and mixing with adjustable shear and conveying performance
Forward conveying capability
Adjustable shear via angle and disc width
Balanced dispersive and distributive mixing
Flexible configuration for different processes

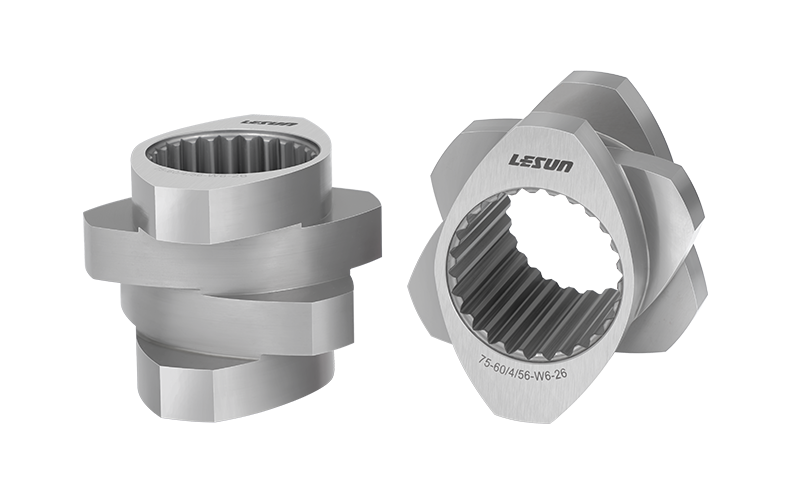

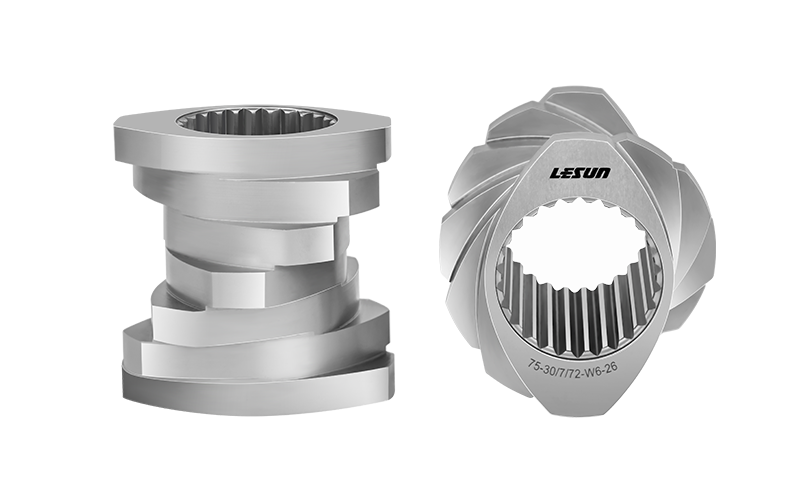

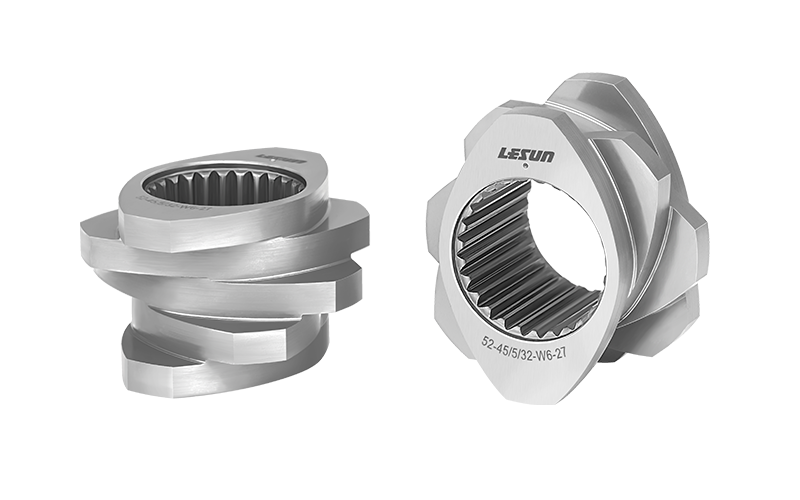

Forward kneading elements are designed to provide a controlled combination of material conveying, plastication and mixing in co-rotating twin screw extruders.
Their performance is primarily determined by:
Stagger angle (30°/45°/60°)
Disc width (narrow/standard/wide)
As the stagger angle increases, conveying capability decreases while mixing intensity increases.
As disc width increases, shear intensity increases while distributive mixing decreases.
This makes forward kneading elements highly adaptable to different processing requirements.
Ensures continuous material transport while mixing.
Controlled through stagger angle and disc thickness.
Provides both dispersive and distributive mixing.
Suitable for a wide range of materials and formulations.
Strong conveying, low mixing intensity
Balanced conveying and mixing
Reduced conveying, strong mixing
Improve distributive mixing
Increase shear and dispersive mixing
Mixing performance = function of angle + disc width + sequence
| Diameter | Ø18–Ø400 |
| Do/Di Ratio | 1.55～1.8 |
| Length | 0.5～2.5D |
| Pitch | Customized |
| Material | N00/D2/D11/W6/H9/H10/H26/Hastelloy/Stainless |
| Surface Hardness | HRC 58–64 |
| Max. Operating Temp | ≤450°C |
| Wear Resistance | Standard/High/Ultra-high |
| Corrosion Resistance | Standard/High/Ultra-high |
| Application | Masterbatch/Compounding/Recycling /Film/Feed/Food/Pharmacy |
| Suitable for | Twin Screw Extruder |
A: Lower angles improve conveying, higher angles increase mixing intensity.
Get a Quote
Neutral kneading elements provide strong mixing with minimal conveying effect, ensuring stable residence time and high mixing efficiency.
Best suited for:
High mixing zones
Sensitive formulations
Residence time control
Reverse kneading elements introduce backflow and pressure build-up, increasing residence time and enhancing mixing intensity.
Best suited for:
Before venting zones
Degassing preparation
High mixing demand sections
