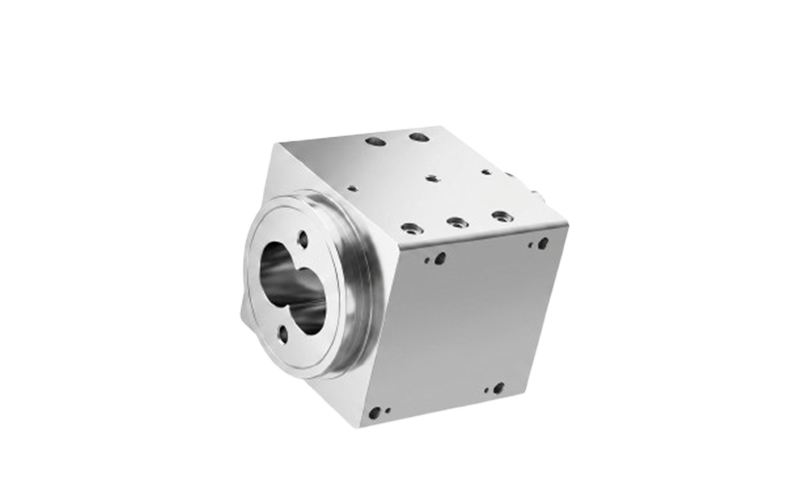

C-Clamp Barrel | Berstorff Type Twin Screw Barrel
Segmented barrel with clamping structure for rapid assembly and high-load stability.
C-clamp barrels adopt a segmented clamping design, enabling quick installation, precise alignment and secure operation under high torque conditions.
| Inner Diameter | 20–400 mm |
| Length | 1D～8D |
| Compatible Models | Ø18–Ø400 |
| Body Material | N00/CK45/A42/Stainless |
| Liner Material | D11/W6/ H6+/H26 |
| Liner Process | Solid sleeve/Sintering Process/Laser Cladding Process |
| "∞" Hole | Cylindricity≤0.02 mm Position≤0.04mm |
| Pressure Rating | ≤50MPa |
| Operating Temperature | 0°C to 450°C |
| Heating Method | Cast copper or aluminum heaters/heating rods/electromagnetic induction heating |
| Cooling Method | Water-cooled/air-cooled/oil-cooled |
| Connection Method | Standard flange connection/clamp-type connection |
A: Faster maintenance and improved structural stability.
